Speedometer Speedo Tachometer

6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white

6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white
6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white
6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white
6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white
6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white
6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white
6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white
6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white

6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white

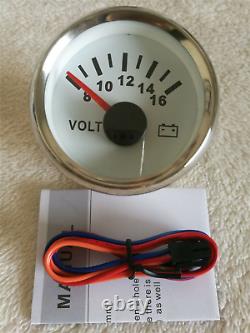

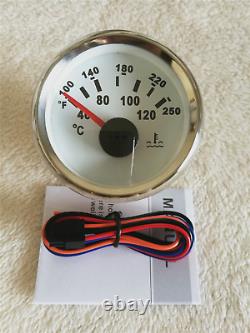

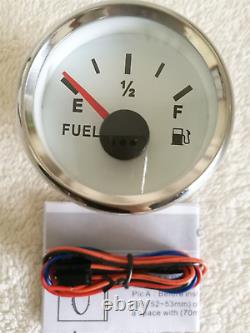

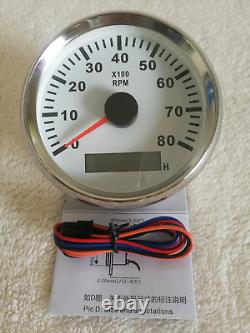

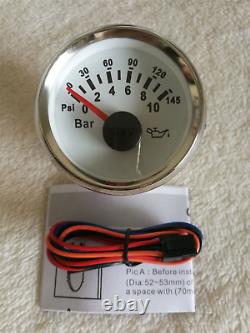

6 Gauge set with senders, Speedometer, Tachometer, Fuel Level, Water Temperature, Volt meter, Oil pressure, Red LED, White Specification: Fit For:Car, Truck, Motorcycle, ATV, UTV, Marine, Boat, Yacht Face Color:White Bezel Materials:Stainless Steel Grade of protection :IP67 Package method :Neutral box Speedometer and tachometer: Operating Voltage:9-32VDC Operating Current:? Install Diameter: 85mm(3-3/8") Backlight:Red Minor gauges: Install Diameter: 52mm Input Ranges Oil Pressure: 10184ohms, 0-145PSI Fuel Level: 240-30ohms Water Temperature: 287.4-22.4ohm, 100-250F Volt: 8-16V Senders: Fuel Level Sender:240-30ohm, 6-1/2"/165mm Water Temperature Sender:287.4-22.4 ohm, 100-250F Oil Pressure Sender:10184ohms, 0-145PSI. 6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white. Note: this gauge set comes with senders.

If you need the gauge without sender, please open the link below. Fit For:Car, Truck, Motorcycle, ATV, UTV, Marine, Boat, Yacht, Golf Carts. Backlight: LED backlight, Red color at night. This tacho must be hooked up to the "W" terminal on vehicle alternator. Many diesel engines and most inboard gas boat engine alternator have this connection. It can also be working with speed sender, flying wheel, ECU, Hei distributor ect. For details, see individual gauge description at link below. Install Diameter: 52mm/(2-1/16) mounting holes, screw on.

If you need other output signals, like 10-180ohms, 0-90ohms ect, Leave me a note. Water Temperature: 287.4-22.4ohm, 100-250F.

Fuel Level Sender:240-33ohm, 6-1/2. We can DIY the length per your needs, but it will charge you extra funds if you need longer than 6.5inch, Send us a message before you paid. Attention: A minimum 1"clearance must be maintained between the tank bottom and the float retaining collar in a plastic tank and 1/2"clearance in a rigid metal tank. Senders can be used with all gauges brands that have compatible ohms.

Water Temperature Sender:287.4-22.4 ohm, 100-250F 1/8-27 NPT. Oil Pressure Sender:10184ohm, 0-145PSI 1/8-27 NPT. Payoneer is my best preferred option. We accept your return within 30-day upon receiving your items, please return the items back to us a same as the condition you receive. We are reliable, passionate and responsible.

All messages be reply within 0-24hours. Welcome for wholesales trading, thank you.


6 gauge set with senders speedo 120km/h tacho fuel temp volts oil pressure white
