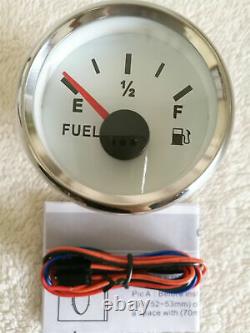

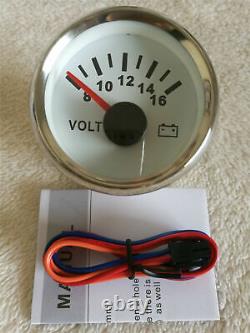

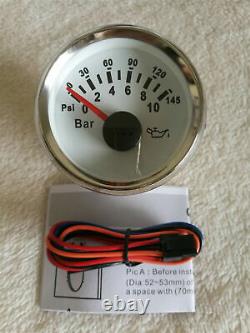

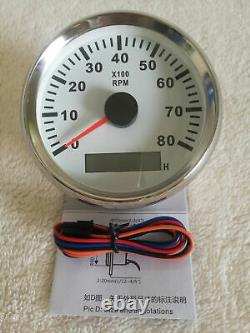

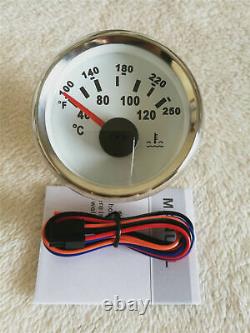

Specification: Fit For:Car Truck Motorcycle ATV UTV Marine Face Color:White Bezel Materials:Stainless Steel Grade of protection :IP67 Package method :Neutral box Speedometer and tachometer: Indicating Range:0-200KPH with Left&Right turning lights and high beam Operating Voltage:9-32VDC Storage Temperature:-40+85? Install Diameter: 85mm(3-3 / 8") Backlight:Red This tacho must be hooked up to the "W terminal on vehicle alternator. Many diesel engines and most inboard gas boat engine alternator have this connection. It can also be working with speed sensor, flying wheel, speede sensor and ECU Minor gauges: Install Diameter: 52mm/(2-1/16)Input Ranges Oil Pressure: 10184ohms, 0-145 PSI/0-10bar Fuel Level: 240-33ohms, Empty - Ful Water Temperature: 287.422.4 ohms, 100-250F Volt: 8-16V.
6 gauge set 85mm GPS 200mph speedo with lights tacho fuel temp volt oil pressure. Fit For:Car Truck Motorcycle ATV UTV Marine Boat Yacht. The speedometer has the function of displaying the left and right steering and the high beam indicator.
Install Diameter: 85mm(3-3 / 8). Backlight: LED backlight, Red color at night. This tacho must be hooked up to the "W" terminal on vehicle alternator. It can also be working with speed sensor, flying wheel and ECU ect. For details, see individual gauge description at link below.Install Diameter: 52mm/(2-1/16) mounting holes, screw on. If you need other output signals, like 10-180ohms, 0-90ohms ect, Leave me a note. Temp: 287.422.4ohms, 100-250F. (Voltmeter has no black line).
If you need the gauge set with senders, please see. Payoneer is my best preferred option. We accept your return within 30-day upon receiving your items, please return the items back to us a same as the condition you receive. We are reliable, passionate and responsible. All messages be reply within 0-24hours. Welcome for wholesales trading, thank you.
