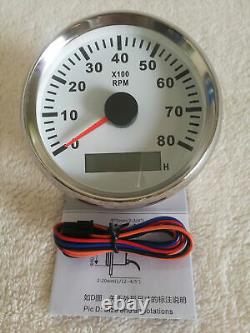

Fit For:Car, Truck, Motorcycle, ATV, UTV, Marine, Boat, Yacht. Install Hole Diameter: 85mm(3-3/8). This tacho must be hooked up to the "W" terminal on vehicle alternator. It can also be working with speed sender. Install Diameter: 52mm/(2-1/16) mounting holes, screw on.

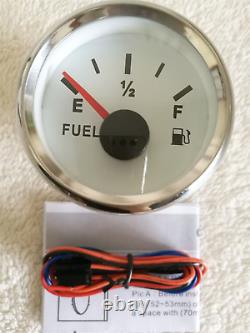

Fuel:240-33 ohms, E - F. (If you need other output signals, like 10-180ohms, 0-90ohms ect, Leave me a note while you paid). Temp:287.4-22.4ohms, 100-250F. For details, see individual gauge description at link below.
Fuel Level Sender:240-33ohm, 6-1/2. (we can DIY the length per your needs, but it will charge you extra funds if you need longer than 6.5inch, Send us a message before you paid). Attention: A minimum 1"clearance must be maintained between the tank bottom and the float retaining collar in a plastic tank and 1/2"clearance in a rigid metal tank. Senders can be used with all gauges brands that have compatible ohms. Water Temperature Sender:287.4-22.4ohm 100-250F. Oil Pressure Sender:10184ohm, 0-145PSI. 1 Press the Set button (less than 1 second) to change the back light color. Color in sequence : Red(Default)-Green-Blue-White-Yellow-Kelly-Orange-Purple-Auto Mode.Remarks : When users select the AUTO MODE, the backlight will be off for around two seconds, and switch automatically as above sequence per minute. 2 Hold the MODE button for three seconds for Switch TRIP01 or TRIP02 or COG to display. TRIP 01: (Default): total mileage for one working cycle, data will not be recorded when power off. TRIP 02: total mileage for one working cycle, data will recorded when power off, but, users could hold the set button for 35 seconds to clear. COG 00 : azimuth instantly indicating, data will not be recorded.
Remarks : The unit of trip, total mileage and outta unit of dial are the same. Speedometer 7 color backlights can be switched backlight as shown below is just an example for your reference. (Tacho, fuel, water temp, volt, oil pressure , The backlight color of these 5 watches is red). All messages be reply within 24hours. Welcome for wholesales trading, thank you!
