6 gauge set with senders 0-200mph speedo tacho fuel temp volt oil pressure black
6 Gauge set with senders Specification: Indicating Range :0-200MPH GPS speedometer with turning lights Fit For:Car, Truck, Motorcycle, ATV, UTV, Marine, Boat, Yacht Face Color:Black Face with Chrome Ring Bezel Materials:Stainless Steel Grade of protection :IP67 Package method :Neutral box Operating Voltage:9-32VDC Operating Current:? Install Diameter: 85mm(3-3/8") Backlight:Red Minor gauges: Install Diameter: 52mm/(2-1/16") Input Ranges Oil Pressure: 10184ohms, 0-145PSI Fuel Level: 240-30 ohms, Empty - Full Water Temperature: 287.4-22.4ohms, 100-250F Volt: 8-16V Sender: Fuel Level Sender:240-30 ohms, 6-1/2 /165mm Water Temperature Sender:287.4-22.4 ohms 100-250F Oil Pressure Sender:10184ohms, 0-145PSI. 6 Gauge set with senders: GPS Speedometer, Tacho, Fuel, Water Temp, Volts, Oil, Fuel sender, Temp sender, Oil sender. Fit For:Car Truck Motorcycle ATV UTV Marine Boat Yacht. The speedometer has the function of displaying the left and right steering and the high beam indicator. Backlight: LED backlight, Red color at night. This tacho must be hooked up to the "W" terminal on vehicle alternator. Many diesel engines and most inboard gas boat engine alternator have this connection. It can also be working with speed sensor, flying wheel and ECU ect.

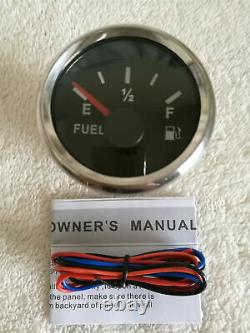

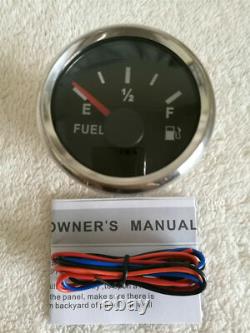

For details, see individual gauge description at link below. Install Diameter: 52mm/(2-1/16) mounting holes, screw on. Fuel Level: 240-30ohms, Empty - Full. If you need other output signals, like 10-180ohms, 0-90ohms ect, Leave me a note.

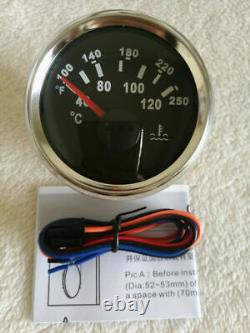

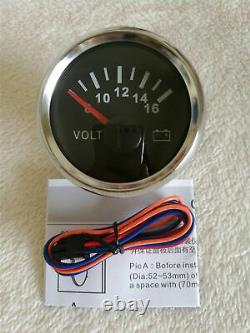

Water Temperature: 287.422.4ohms, 100-250F. (Voltmeter has no black line). Fuel Level Sender:240-30 ohms, 6-1/2/165mm. We can DIY the length per your needs, but it will charge you extra funds if you need longer than 6.5inch, Send us a message before you paid. Attention: A minimum 1"clearance must be maintained between the tank bottom and the float retaining collar in a plastic tank and 1/2"clearance in a rigid metal tank.

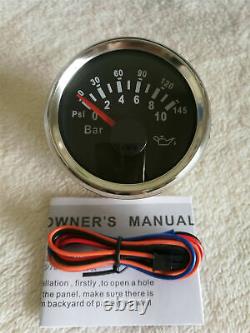

Senders can be used with all gauges brands that have compatible ohms. Water Temperature Sender:287.422.4 ohms 100-250F. Oil Pressure Sender:10184ohms, 0-145 PSI. Fuel level sender:Brown--Signal Input.
1/8NPT Oil pressure sender:G--Sensor. Signal WK--Alarm(0.8bar) Shell--Ground(-). Payoneer is my best preferred option. All messages be reply within 24hours. Welcome for wholesales trading, thank you!
