6 gauge set with senders 200mph 300km/h speedo tacho fuel temp volt oil pressure
Specification: Fit For:Car, Truck, Motorcycle, ATV, UTV, Marine Face Color:Black Face with Black Bezel Bezel Materials:Stainless Steel Grade of protection :IP67 Package method :Neutral box GPS Speedometer and tachometer: Operating Voltage:9-32VDC Operating Current:? Install Diameter: 85mm(3-3/8") Backlight: LED backlight, Red color at night Input Ranges Oil:10184ohms, 0-145 Psi Fuel:240-33 ohm, Empty - Full Temp:287.4-22.4ohm, 100-250F Volt:8-16V Sending Units Fuel Level Sender:240-30ohm, 6-1/2"/165mm Water Temperature Sender:287.4-22.4 ohms, 1/8"-27 NPT Oil Pressure Sender:10-184 ohms, show 0-145 PSI, 1/8"-27 NPT, w/11 psi This tachometer works with Speed Sensor or W terminal, it won't work with ignition coil system. 6 gauge set with senders 200mph 300km/h speedo tacho fuel temp volt oil pressure. 6 Gauge set with senders: GPS Speedometer, Tacho, Fuel, Water temp, Volts, Oil pressure, Fuel sender, Temp sender, Oil pressure sender. Fit For:Car, Truck, Motorcycle, ATV, UTV, Marine, Boat, Yacht.

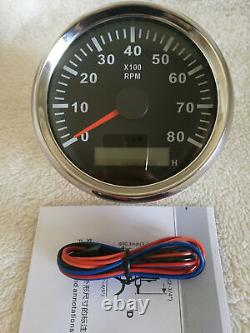

Face Color:Black Face with Chrome Ring. Backlight: LED backlight, Red color at night. This tacho must be hooked up to the "W" terminal on vehicle alternator.
Many diesel engines and most inboard gas boat engine alternator have this connection. It can also be working with tachometer sender.

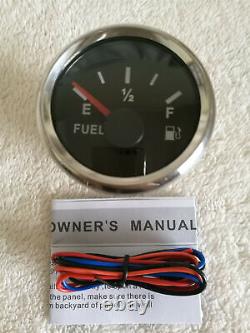

For details, see individual gauge description at link below. Install Diameter: 52mm/(2-1/16) mounting holes, screw on. Fuel : 240-33 ohm, EMPTY - FULL. If you need other output signals, like 10-180ohms, 0-90ohms ect, Leave me a note. Temp:287.4-22.4ohm, 100-250F.
Fuel Level Sender:240-33ohm, 6-1/2. We can DIY the length per your needs, but it will charge you extra funds if you need longer than 6.5inch, Send us a message before you paid.
Attention: A minimum 1"clearance must be maintained between the tank bottom and the float retaining collar in a plastic tank and 1/2"clearance in a rigid metal tank. Senders can be used with all gauges brands that have compatible ohms.

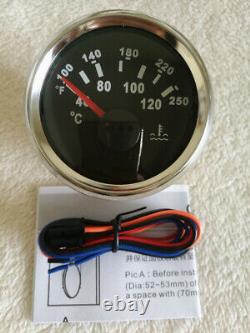

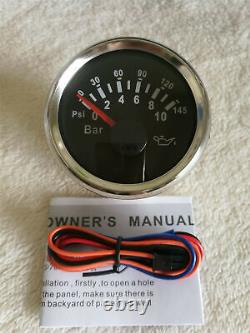

Water Temperature Sender:100-250F 287.4-22.4 ohms, 1/8-27 NPT. Oil Pressure Sender:10-184 ohms, show 0-145 PSI, 1/8-27 NPT, w/11 psi. If you need the gauge set without senders, please see. Payoneer is my best preferred option. We accept your return within 30-day upon receiving your items, please return the items back to us a same as the condition you receive. We are reliable, passionate and responsible. All messages be reply within 0-24hours.Welcome for wholesales trading, thank you.
