6 gauge set with senders 200mph 300km/h speedo tacho fuel temp volt oil pressure

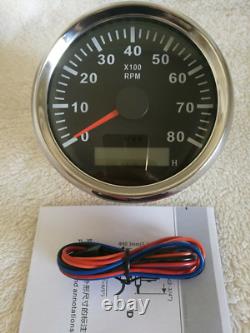

Specification: Fit For:Car Truck Motorcycle ATV UTV Marine Face Color:Black Bezel Materials:Stainless Steel Grade of protection :IP67 Package method :Neutral box Speedometer and tachometer: Indicating Range:0-200MPH 300KM/H LED screen shows odometer (miles) Operating Voltage:9-32VDC Storage Temperature:-40+85? Install Diameter: 85mm(3-3 / 8") Backlight:Red This tacho must be hooked up to the "W terminal on vehicle alternator. Many diesel engines and most inboard gas boat engine alternator have this connection. It can also be working with speed sensor, flying wheel and ECU.

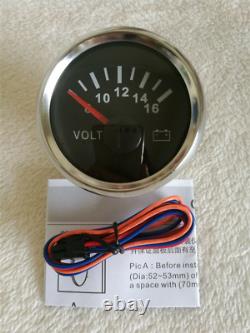

Minor gauges: Install Diameter: 52mm/(2-1/16)Input Ranges Oil Pressure: 10184ohms, 0-145 PSI/0-10bar Fuel Level: 240-30 ohms, EMPTY- FULL Water Temperature: 287.422.4 ohms, 100-250F Volt: 8-16V. 6 gauge set with senders 200mph 300km/h speedo tacho fuel temp volt oil pressure. 6 Gauge set with senders: GPS 200MPH 300KM/H Speedometer, Tacho, Fuel, Temp, Volt, O. Il Pressure, Fuel Level Sender, Water Temp Sender, Oil Pressure Sender.
Fit For:Car, Truck Motorcycle ATV UTV Marine Boat Yacht. Indicating Range: 200MPH 300KM/H Odometer Features. Backlight: LED backlight, Red color at night.This tacho must be hooked up to the "W" terminal on vehicle alternator. It can also be working with speed sender flying wheel ECU or hei distributor.

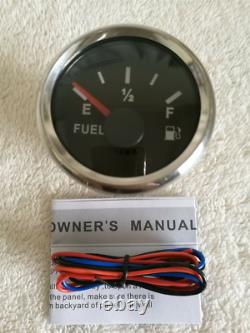

For details, see individual gauge description at link below. Install Diameter: 52mm/(2-1/16) mounting holes, screw on. Fuel : 240-33 ohms, EMPTY - FULL. If you need other output signals, like 10-180ohms, 0-90ohms ect, Leave me a note. Temp:287.4-22.4ohms, 100-250F.
Fuel Level Sender:240-33ohm, 6-1/2/165mm. We can DIY the length per your needs, but it will charge you extra funds if you need longer than 6.5inch, Send us a message before you paid. Attention: A minimum 1"clearance must be maintained between the tank bottom and the float retaining collar in a plastic tank and 1/2"clearance in a rigid metal tank.

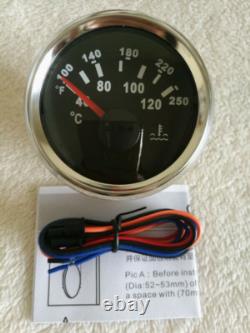

Senders can be used with all gauges brands that have compatible ohms. Water Temperature Sender: 287.4-22.4ohms 100-250F. Oil Pressure Sender: 10184ohms, 0-145PSI.
Fuel level sender:Brown--Signal Input Blue--Ground(-). Oil pressure sender:G--Sensor signal WK--Alarm(0.8bar) Shell--Ground. Water Temp sender:Red--Sensor signal Black--Ground(-).
If you need the gauge set without senders, please see. Payoneer is my best preferred option.
