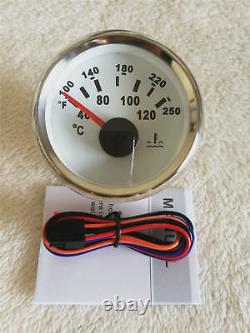

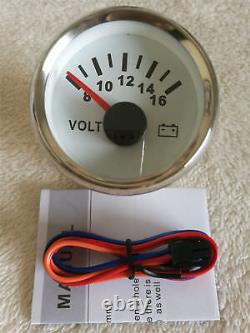

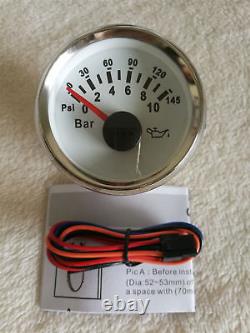

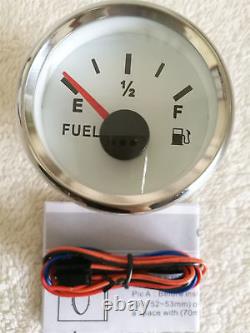

Specification: Fit For:Car, Truck, Marine Face Color:White Face Chrome Ring Grade of protection :IP67 Package method :Neutral box Speedometer and tachometer: The speedometer has the function of displaying the left and right steering and the high beam indicator Operating Voltage:9-32VDC Operating Current:? Install Diameter: 85mm(3-3/8") Backlight:Red Led Minor gauges: Install Diameter: 52mm/(2-1/16") mounting holes, screw on Input Ranges Oil Pressure: 10184ohms, 0-145PSI Fuel : 240-30 ohm, E - F Water Temperature: 287.422.4ohms, 100-250F Volt: 8-16V Matching Senders: Oil pressure sender: 10-184 ohms, show 0-145 PSI, 1/8"-27 NPT Fuel level sender: 240-33 ohms length 6-1/2" Water temp sender: 287.4-22.4 ohms, 1/8-27 NPT. 6 Gauge Set with senders, 85mm 120KM/H Speedo, Tacho, Fuel, Temp, Volt, Oil, Fuel/temp/oil pressure sensor. Fit For:Car, Truck, Motorcycle, ATV, UTV, Marine. Face Color:White Face with Chrome Ring.

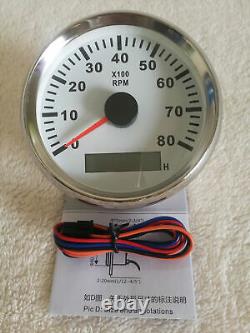

The speedometer has the function of displaying the left and right steering and the high beam indicator. Indicating Range:120KM/H with turning lights. Backlight: LED backlight, Red color at night. This tacho must be hooked up to the "W" terminal on vehicle alternator.

Many diesel engines and most inboard gas boat engine alternator have this connection. It can also be working with tachometer sender, ECU ect. For details, see individual gauge description at link below. Install Diameter: 52mm/(2-1/16) mounting holes, screw on. Fuel : 240-33ohms, Empty - Full.

(If you need other output signals, like 10-180ohms, 0-90ohms ect, Leave me a note while you paid). Temp:287.4-22.4ohm, 100-250F. Fuel Level Sender:240-33ohms, 6-1/2.

(we can DIY the length per your needs, but it will charge you extra funds if you need longer than 6.5inch, Send us a message before you paid). Attention: A minimum 1"clearance must be maintained between the tank bottom and the float retaining collar in a plastic tank and 1/2"clearance in a rigid metal tank. Senders can be used with all gauges brands that have compatible ohms. Water Temperature Sender:287.4-22.4ohms 100-250F 1/8-27 NPT. Oil Pressure Sender:10184ohm, 0-145PSI 1/8-27 NPT.

If you need the gauge set without senders, please see. Payoneer is my best preferred option. All messages be reply within 24hours.
