6 gauge set with senders GPS 0-120km/h speedo tacho fuel temp volts oil Pressure
Specification: Fit For:Car, Truck, Motorcycle, ATV, UTV, Marine, Boat, Yacht Face Color:Black Bezel Materials:Stainless Steel Grade of protection :IP67 Package method :Neutral box Speedometer and tachometer: Indicating Range:0-120KM/H with Left&Right turning lights and high beam Operating Voltage:9-32VDC Storage Temperature:-40+85? Install Diameter: 85mm(3-3 / 8") Backlight:Red LED This tacho must be hooked up to the "W terminal on vehicle alternator. Many diesel engines and most inboard gas boat engine alternator have this connection. It can also be working with speed sensor Minor gauges: Install Diameter: 52mm/(2-1/16)Input Ranges Oil Pressure: 10184ohms, 0-145 PSI/0-10bar Fuel Level: 240-30 ohms, Empty - Full Water Temperature: 287.422.4 ohms, 100-250F Backlight:Red LED.
6 Gauge Set With senders, 85mm 120KM/H Speedo, Tacho, Fuel, Temp, Volt, Oil Pressure, Fuel/temp/oil pressure sensor. Fit For:Car, Truck, Motorcycle, ATV, UTV, Marine. Face Color:Black Face with Black Bezel.

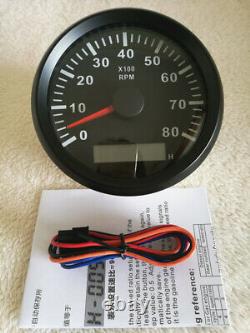

Indicating Range:0-120KM/H with Left&Right turning lights and high beam. Backlight: LED backlight, Red color at night. This tacho must be hooked up to the "W" terminal on vehicle alternator.

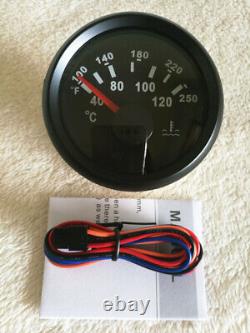

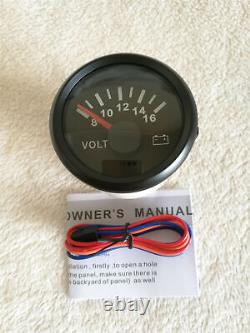

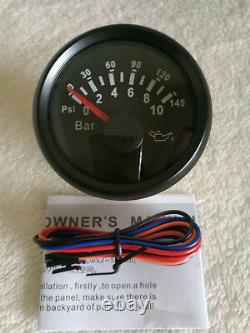

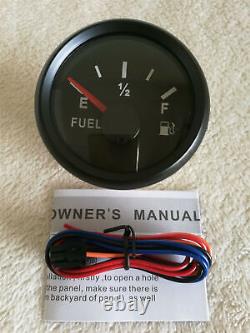

It can also be working with speed sensor, ECU ect. For details, see individual gauge description at link below. Fuel Level: 240-30ohms, Empty - Full. If you need other output signals, like 10-180ohms, 0-90ohms ect, Leave me a note. Water Temperature: 287.422.4ohms, 100-250F. (Voltmeter has no black line). Fuel Level Sender:240-33 ohms, 6-1/2. We can DIY the length per your needs, but it will charge you extra funds if you need longer than 6.5inch, Send us a message before you paid. Attention: A minimum 1"clearance must be maintained between the tank bottom and the float retaining collar in a plastic tank and 1/2"clearance in a rigid metal tank. Senders can be used with all gauges brands that have compatible ohms. Water Temperature Sender:100-250F 287.4-22.4 ohms, 1/8-27 NPT. Oil Pressure Sender:10-184 ohms, show 0-145 PSI, 1/8-27 NPT, w/11 psi. Fuel level sender:Brown--Signal Input. 1/8NPT Oil pressure sender:G--Sensor. Signal WK--Alarm(0.8bar) Shell--Ground(-). Payoneer is my best preferred option. All messages be reply within 24hours. Welcome for wholesales trading, thank you!
